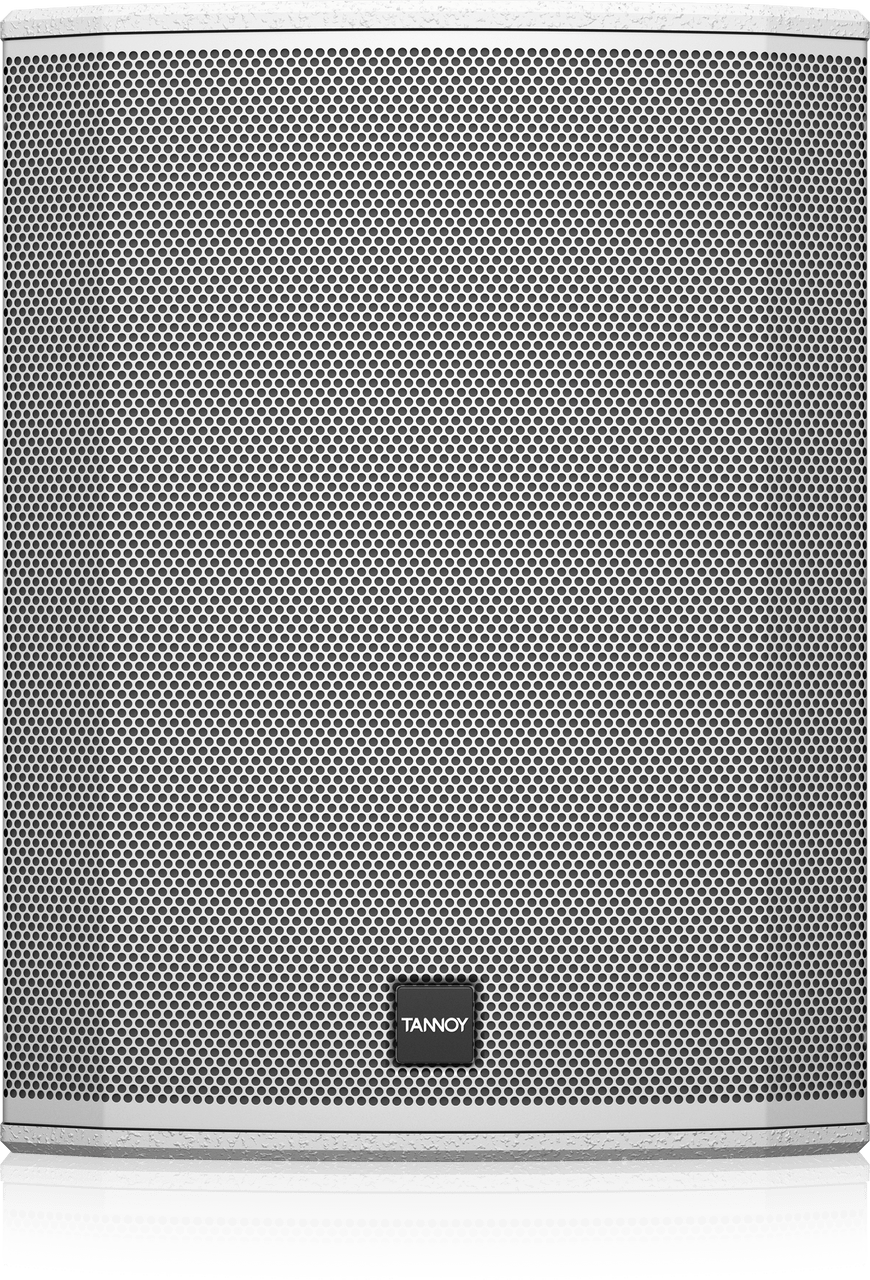

The Tannoy VX12HP is a high-performance 12-inch passive loudspeaker designed for powerful, accurate sound reinforcement in demanding live and installed applications. Equipped with a premium high-output LF driver and a titanium-dome HF compression driver, the VX12HP delivers exceptional clarity, extended low-frequency response, and impressive SPL capability.

Built with Tannoy’s signature point-source design philosophy, the VX12HP ensures natural sound dispersion, superior vocal intelligibility, and consistent coverage across any space. Its rugged birch plywood cabinet and powder-coated steel grille provide excellent durability, making it suitable for touring, venues, houses of worship, corporate events, DJ setups, and fixed installations.

Key Features

• High-performance 12” low-frequency driver
• Titanium-dome high-frequency compression driver for clear and detailed highs
• Point-source configuration for highly controlled, coherent coverage
• High-power handling ideal for professional sound reinforcement
• Robust birch plywood construction with durable finish
• Omnimount-compatible for flexible installation options
• Speakon connectors for secure and reliable connections

Specifications

• Frequency Response: 60 Hz – 22 kHz
• Power Handling: 600W RMS / 2400W Peak
• Sensitivity: 98 dB
• Maximum SPL: 131 dB Peak
• Coverage Pattern: 90° x 60°
• Driver Configuration: 12” LF + 1” HF compression driver
• Impedance: 8 Ohms
• Connectors: 2 × Neutrik Speakon
• Enclosure: Birch plywood with steel grille
• Mounting: Pole-mountable, wall/ceiling bracket compatible
