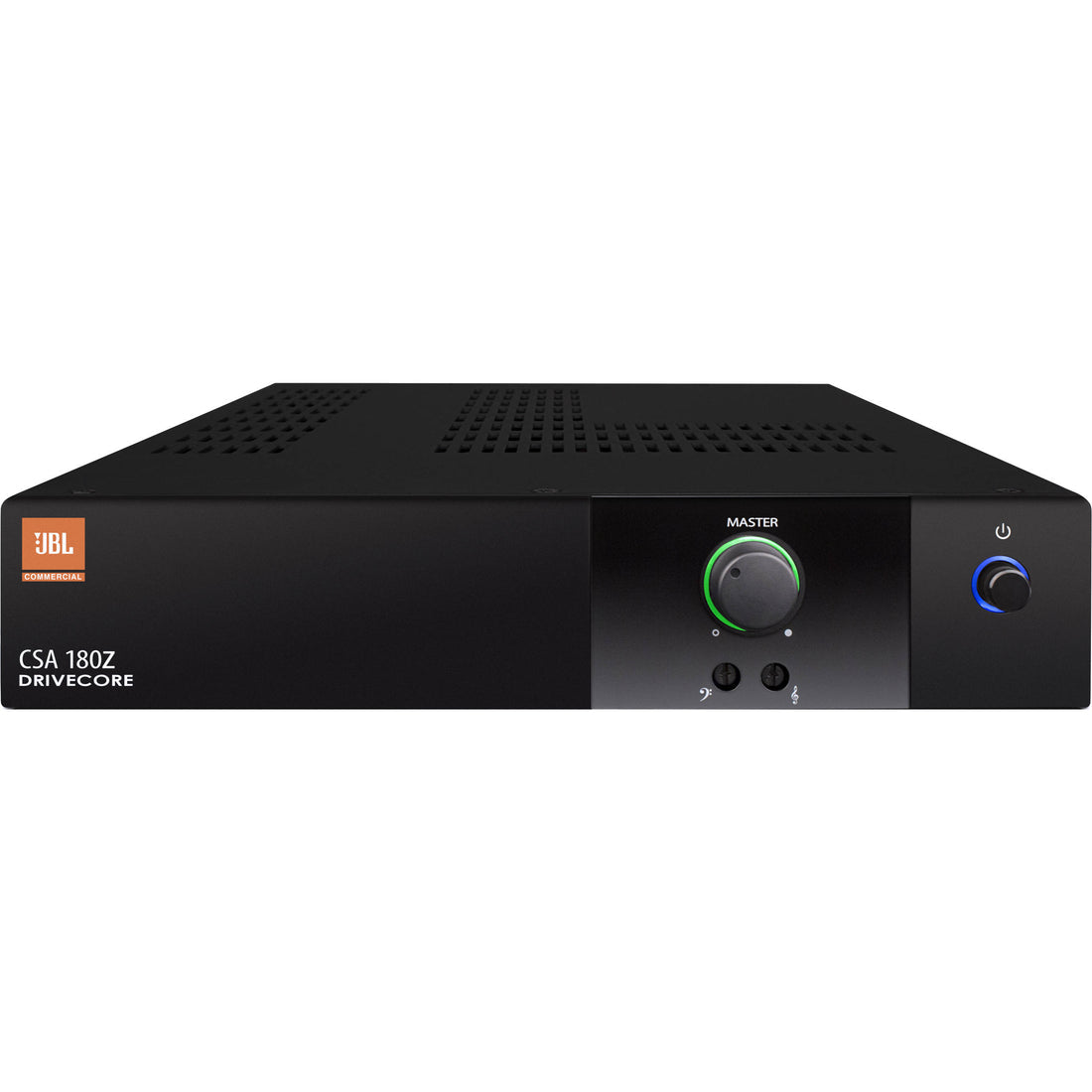

JBL CSA180Z Audio Amplifier - 1x80W
The JBL CSA180Z is a single-channel commercial-grade amplifier designed for reliability and simplicity in background music and paging applications. Deliverin...
The JBL CSA180Z is a single-channel commercial-grade amplifier designed for reliability and simplicity in background music and paging applications. Delivering 80 watts of power into 4Ω, 70V, or 100V systems, this compact amp is ideal for small to mid-sized installations such as cafés, retail stores, and office environments.
Built with JBL’s efficient DriveCore™ technology, the CSA180Z provides consistent audio performance with minimal heat and energy consumption. Easy to integrate and operate, it features a balanced mic/line input, priority muting, and optional remote volume control for added convenience.
Key Features:
- 1 x 80W output at 4Ω, 70V, or 100V
- Energy-efficient Class D amplifier with DriveCore™ technology
- Balanced mic/line input with phantom power
- Priority muting and remote volume control support
- Universal power supply (100–240V AC)
- Compact, rack-mountable 1U design
Specifications:
- Frequency Response: 20 Hz – 20 kHz (+0/–1 dB)
- Signal-to-Noise Ratio: > 100 dB
- Total Harmonic Distortion: < 0.5%
- Dimensions (W x H x D): 217 mm x 43 mm x 297 mm
- Weight: 3.8 kg (8.4 lbs)
Condition: Brand New
Estimated Processing Time Before Shipping: 5–7 Business Days
Free Shipping in Canada and the USA
